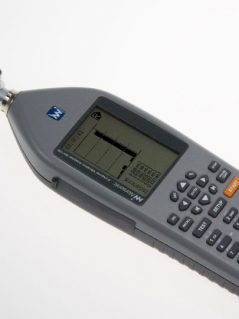

Nor136, 6 channel vibration meter

Nor136, 6 channel vibration meter

Nor 136, 6 channel vibration meter designed to be used for vibration measurements following ISO8041.

Category: Tag:

Description

The precision vibration meter Nor136 is designed in accordance with ISO 8041. In the basic version, the  meter is well suited for measurement of whole body and hand-arm vibration measurements.

Optional upgrades allow for the measurement and analysis as vibration in buildings, ships, vehicles and public transport systems in accordance to international and national standards.


Features and applications

  • Whole body vibration to ISO 2631, EN/2002/44/EC
  • Hand Arm vibration to ISO 5349, EN/2002/44/EC
  • Building Vibration measurement to DIN 4150, ISO 2631, BS6472
  • Ship cabin vibration measurements to ISO 6954
  • Vibration measurements to ÖNORM S9012 (ny linje)
  • Building vibration measurements to DIN4150-3, BS7385-1, ISO4866 (ny linje)
  • General machine vibration – data logger
  • Graphical and numerical display of all channels simultaneously
  • Huge memory capacity with SD memory card
  • Records the raw data signal for later analyzed in NorVibraTest
  • Powerful post processing software NorVibraTest

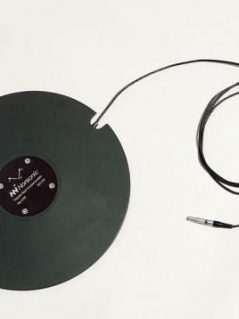

  • Complete range of accelerometers for HA and WB measurements
  • 6 channels in whole body mode
  • Multi language
  • Comment channel
  • Supports IEPE and Charge accelerometers, AC and DC voltage sensors, passive geophones (omgjort setning)
  • Data export to National Instrument DIAdem software

Vibration meters Nor133/Nor136


Vibration Meter Nor1363 Options

Basic Basic version of Nor136 includes all weighting networks and the use of them in accordance to ISO 2631-1,whole body, that covers the requirements given for “health impact to the human body” and the ISO 5349-1 Hand Arm.The basic unit is delivered with softcase Nor1336, NorVirtual, a PC application program that allows the user to control and display the measurements on the PC, Nor1044, NorVibConvrter, a PC measurement download program, 2GB SD-memory card, Batteries, Instruction manual and USB cable. Sensors are not included.
Option1        Raw data sampling
Option2        Extended standard support package level 1.
Option3        Level vs time
Option4        Charge and DC input
Option5        Extended standard support package level 2 (Nor1292 geophone needed)
Option6        Data export optoin for National Instruments DIAdem software




Download Nor136 product datasheet
