Nor145 Sound Analyzer

Nor145 Sound Analyzer

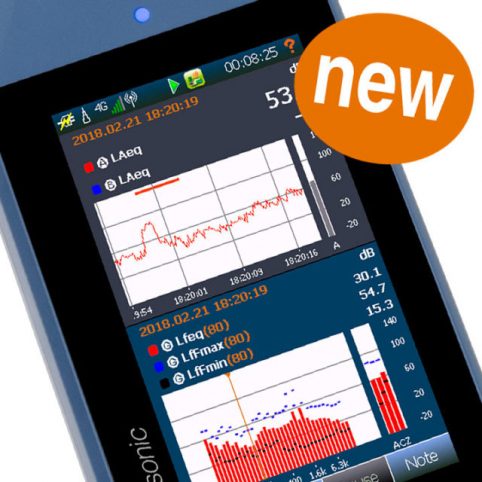

The advanced Nor145 is our top range sound level meter. Easy to use thanks to its large colour touchscreen and intuitive menus.

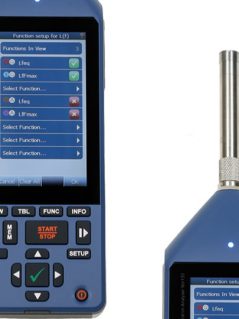

It shares the same user interface as Nor150, but hosted in a smaller and lighter enclosure.

Nor145 is a single channel unit optimized for easy connectivity to NorCloud, NorRemote or Nor850, through the built-in WLAN and 3G/4G LTE modem.

Latest software release version 3:

  • FFT auto spectrum up to 22kHz with selectable line resolution. of 1,46Hz (16384 lines) or 2,93 Hz (8192 lines). The FFT can run in parallel with 1/1 or 1/3 octave filters.
  • Full support for Engineering units, m/s and m/s2. Easy swop between engineering units and dB for each display view.
  • Support for vibration sensor and engineering units  (m/s or m/s2) in one measurement channel and sound (dB) data in the other channel. (Nor150 only).
  • Default vibration sensors added (Nor1270 accelerometer).
  • Weather station support for Thies model 4.9200.000.000.
  • Noise Compass Nor1297 support.
  • Profile B possible with Profile A period shorter than 1 second.
  • Up to 10% improved battery lifetime (Nor145 only).
  • Improved accuracy for GPS position and time.
  • MEM gives access to all saved measurements in all modes.
  • Show name of selected setup/standard in INFO screen.
  • Show name of measurement in SLM view.
  • Possibility to switch sensors in the 2 channels without making a dummy – and to delete a sensor that is in use (Nor150 only).
  • Optimized data handling (storage and display) improving stability and performance.
  • Improved SD card handling including controlled “power off” handling to avoid corrupt files



Description

Nor145

Norsonic innovates sound level meters by using a 4.3” large true color touchscreen, to serve you user-friendliness that we know from our smartphones. Further features of the Nor145 is a 3G/4G LTE modem, GPS, an internal web server for remote instrument control on any device (smartphone, pad or PC), and an advanced voice and text note editor. Even photos and voice notes that you make on your phone will seamless be transferred and integrated with markers to your noise data, by installing the NorRemote app (android store).

All these features do make the Nor145 the perfect toolbox for in-situ field measurements.
