Nor275 Hemi Dodecahedron Loudspeaker

Nor275 Hemi Dodecahedron Loudspeaker

Nor275 Hemi Dodecahedron loudspeaker, Building Acoustics Norsonic, A powerful sound source designed for building acoustics measurements per ISO-140/4 Annex A (Field measurements).

Description



Only 6 kg – 120dB Lw !

A powerful sound source designed for building acoustics measurements per ISO-140/4 Annex A (Field measurements).

The source provides uniform sound radiation. When used with the power amplifier Nor280, the high sound power level ensures accurate descriptors in measurement conditions that include high background levels, high sound insulation properties and large room volumes.

Nor275 is designed for placement on the floor and uses the floor as a mirror for emitted sound.

The loudspeaker is designed to operate at full power for more than one hour continuously.

The Nor275 is designed to be used with the Nor280 power amplifier only. Using other amplifiers may damage the speaker and will void the warranty.

  • Nor275 fulfill ISO 140-4 Annex A standard for airborne insulation measurements in field.
  • Powerful – 120 dB Lw
  • Lightweight (6 kg / 13.2 lb), portable and rugged design for field use.

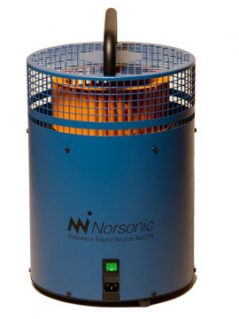

Nor275 Hemi-dodecahedron loudspeaker

Typical sound power level vs. frequency of the hemi-dodecahedron loudspeaker Nor275 when used with the pink noise source and equalizer included in the power amplifier Nor280.


Nor275 Hemi Dodecahedron loudspeaker, Building Acoustics Norsonic

Nor275 Hemi-dodecahedron loudspeaker Datasheet
